Power Plant Control (PPC)
ELOG Power Plant Control Regulators provide green energy!
Overview our currently installed projects
The Fränz&Jaeger PPC (1) for connection of energy generation plants like photovoltaics, biogas or wind turbines is now available with eLOGControl in newest version 3.0!
Source: WAGO
1 The power plant controller or park controller forms the interface between the system and the energy supplier, grid operator and direct marketer, for example to market power on the stock exchange. It regulates the setpoint specifications for active and/or reactive power at the grid connection point (NAP) required by the grid operator. It compares these setpoint specifications with the measured actual values at the NAP and communicates the calculated control variable to the generating units (EZE). Using the power plant controller, the grid operator can control the system feed-in on the generator side using prescribed characteristics.

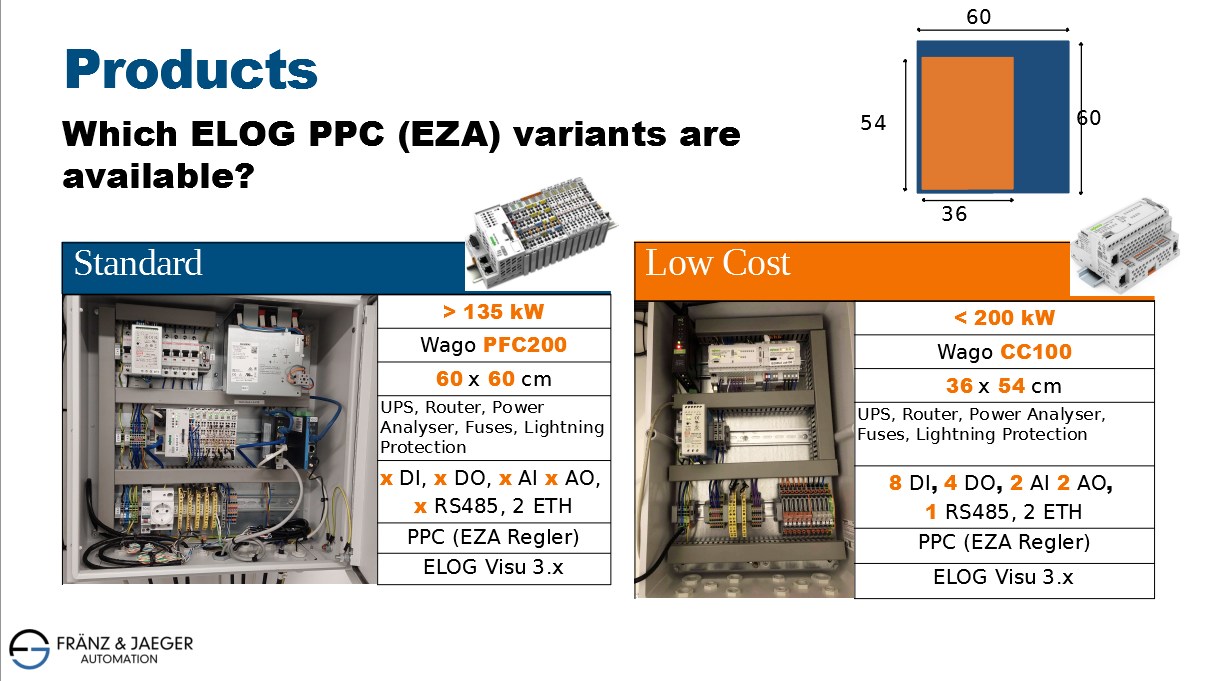

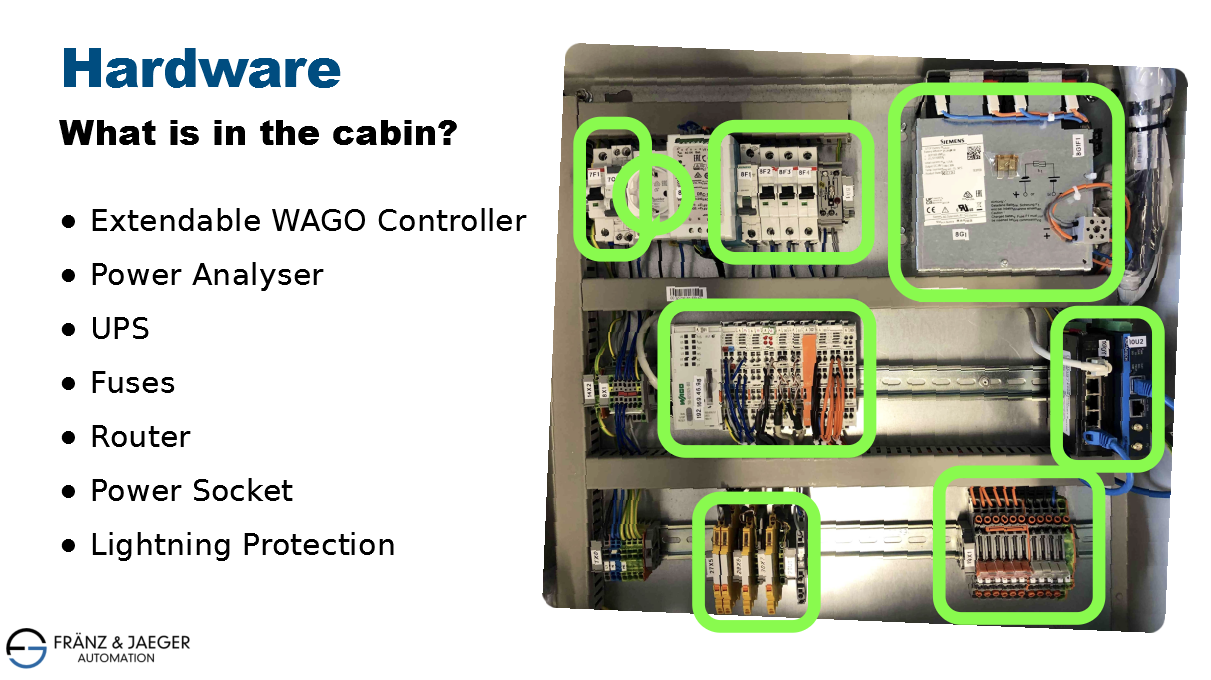

The PPC is available as a complete control cabinet module.

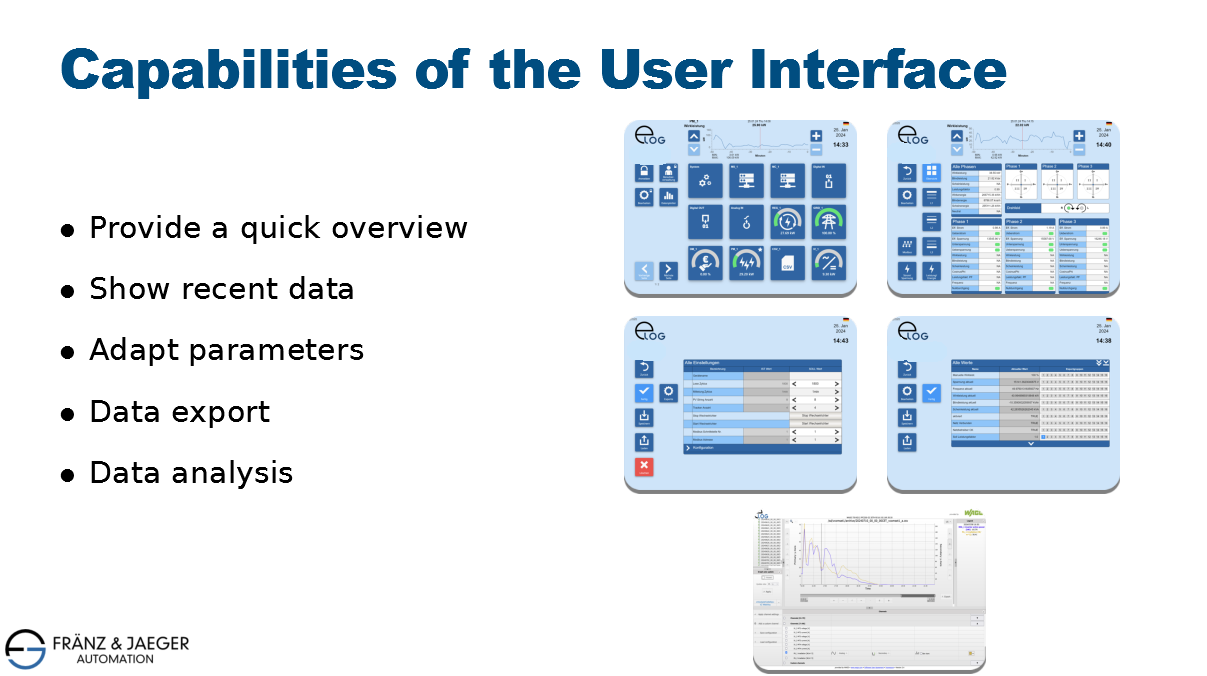

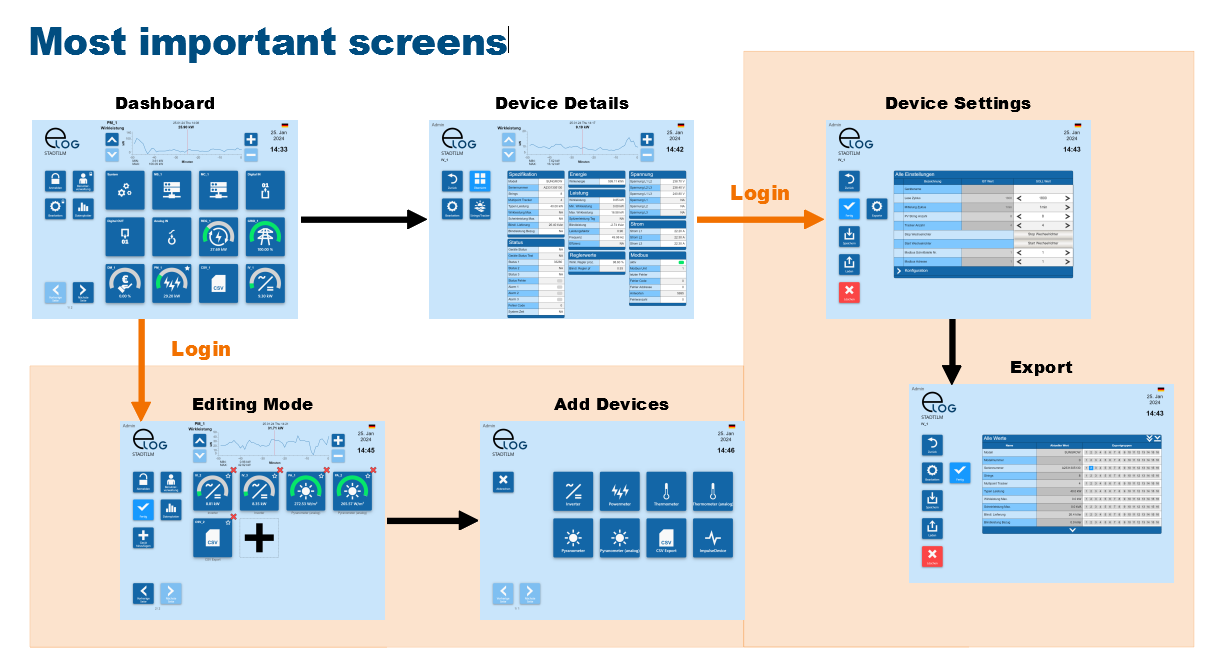

Visualisation can take place in various portals, e.g. also in the VCOM portal.
The controller is combined with the tried-and-tested eLOG energy recording and energy management component ElogControl.
eLOG Energy Management
A variety of solutions are available for controlling the inverters thanks to the use of the modular Wago system.
Technical Data:
Standard Modell FJEZA 2.2-Indoor
EZA Regler VDE AR-N-4110
ELOG Energy Logger
UPS integrated
Switch 5 Port integrated

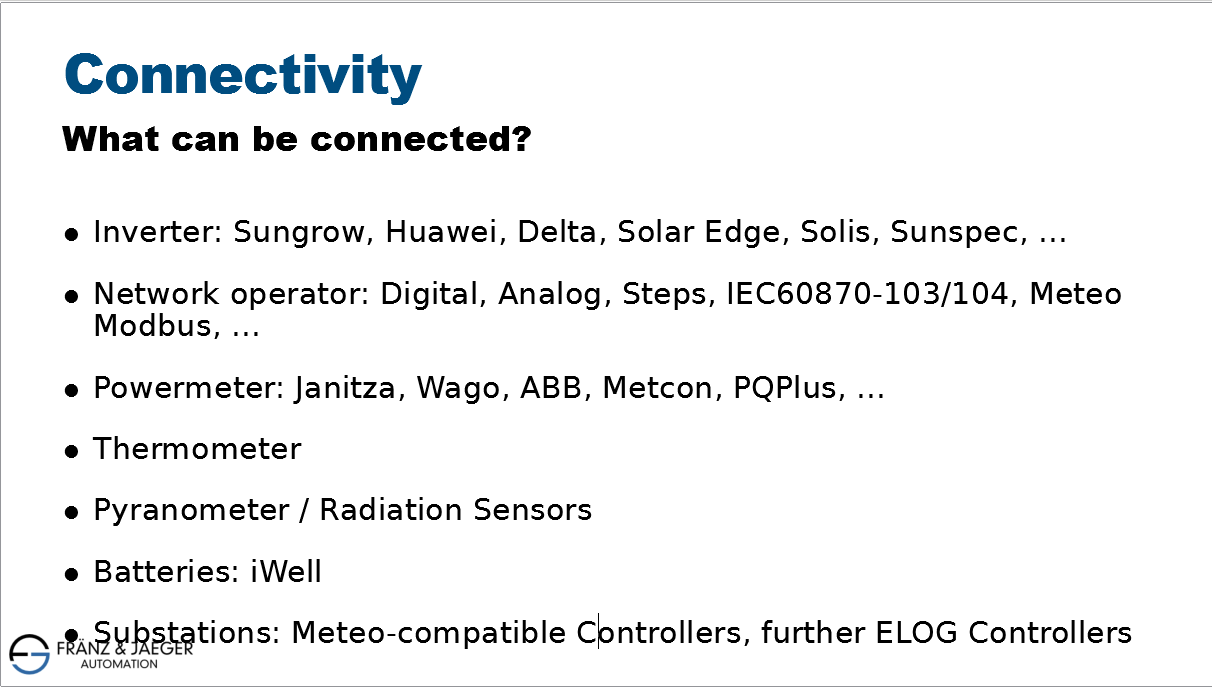

Connectivity:
2 x RJ45 (1 telecontrol)
1 x RS232/485 telecontrol
1 x RS485 Modbus
1 x 3 Phases Power Analyzer
8 Digital inputs 24V
8 Digital outputs 24V 0,5A or potential free
Telecontrol Protokols:
IEC 60870-5-104 (IP)
IEC 60870-5-101 (RS485)
IEC 61400-25
IEC 61850-7
DNP3
Power Supply:
230V 120W Peak 20W Typisch
Cabinet:
Sheet Steel
Color like RAL 7035
Protection class IP according to IEC 60529 IP66
Dimensions 500 x 500 x 210mm
Weight approx.. 20 KG
